+14
-
28ft long
-
5,140 lbs
-
Sleeps 5
-
Front BathRear Living Area

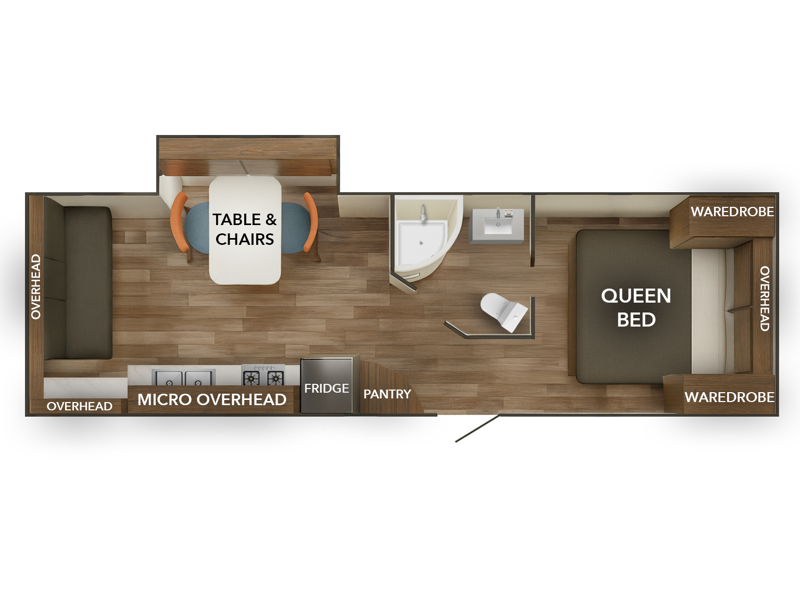

24RLS Floorplan
Specifications
| Sleeps | 5 | Length | 28 ft 1 in |
| Ext Width | 8 ft | Ext Height | 11 ft 3 in |
| Int Height | 6 ft 8 in | Hitch Weight | 930 lbs |
| GVWR | 7930 lbs | Dry Weight | 5140 lbs |
| Cargo Capacity | 1860 lbs | Fresh Water Capacity | 23 gals |
| Grey Water Capacity | 34 gals | Black Water Capacity | 34 gals |
| Tire Size | 205/75R14C | Furnace BTU | 20000 btu |
| Refrigerator Size | 6 cu ft | Cooktop Burners | 3 |
| Number of Awnings | 1 | LP Tank Capacity | 40 lbs |
| Water Heater Type | Tankless | AC BTU | 13500 btu |
| TV Info | Main TV Max Size: 50" | Axle Count | 2 |
Description
Overview
Stretch out in a true rear-living layout that tows light and lives big. The 2025 Grand River Classic 24RLS pairs a bright lounge with a dinette slide, panoramic windows, and a walk-around queen bed up front. A dual-entry bath simplifies mornings, while camp-ready systems—10.7 cu ft 12V refrigerator, 3-burner cooktop, microwave, tankless hot water, 13.5K BTU A/C, and 20K BTU furnace—keep weekends smooth and comfortable.
Premium Package Features Include:
- Air Conditioner
- Power Front Jack
- Outside Shower
- Solid Entry Step
- Spare Tire and Carrier
Why Buyers Choose the Classic 24RLS
Rear-living comfort with big windows, a welcoming lounge, and a slide-out dinette for room to relax.
Tow-friendly design at 5,140 lb dry and 28'1" overall length, offering confident highway handling.
Dual-entry bath provides access from both the hallway and the bedroom for added convenience.
A 10.7 cu ft 12V refrigerator offers efficient cooling while maximizing food storage space.
Tankless water heater delivers continuous hot water for dishes and showers.
Season-ready HVAC includes a 13.5K BTU A/C and a 20K BTU furnace to keep the cabin comfortable in changing weather.
Feature Highlights
Rear-Living Lounge — A spacious back lounge with large windows makes rainy days and movie nights cozy and enjoyable.
Slide-Enhanced Dining — The dinette slide-out opens the main living area for easier movement and more usable space.
Tankless Convenience — Instant hot water on demand for showers and cleanup.
Efficient 12V Refrigeration — 10.7 cu ft 12V refrigerator cools effectively while preserving energy and storage space.
All-Season Comfort — Designed for comfort from spring through late fall with a 20K BTU furnace and 13.5K BTU A/C.
Who It’s Perfect For
Couples who want a bright, comfortable rear-living space with room to host.
First-time RV owners who prefer a lightweight, easy-to-tow unit with dependable features.
Weekend travelers looking for a dual-entry bath and modern 12V appliances for convenience.
Frequently Asked Questions
How much does it weigh?
Approximately 5,140 lb dry with a 930 lb hitch weight. GVWR is 7,930 lb. Always verify your vehicle’s tow and payload ratings.
How many people can it sleep?
Sleeps 4 to 5 using the walk-around queen bed up front and convertible lounge seating in the rear.
Does it have a slide-out?
Yes, it includes one slide-out that expands the dining and living area.
What are the tank sizes?
23 gal fresh water, 34 gal grey water, and 34 gal black water.
What appliances are included?
A 10.7 cu ft 12V refrigerator, microwave, 3-burner cooktop, tankless water heater, 13.5K BTU A/C, and 20K BTU furnace.
Core Specifications
Exterior Length: 28'1"
Exterior Width: 8'0"
Exterior Height: 11'3"
Interior Height: 6'8"
Axles: 2
Hitch Weight: 930 lbs
Dry Weight: 5,140 lbs
GVWR: 7,930 lbs
Sleeping Capacity
Sleeps 4 to 5 with walk-around queen bed and convertible lounge seating.
Tank Capacities (US Gallons)
Fresh Water: 23 gal
Grey Water: 34 gal
Black Water: 34 gal
Climate & Appliances
Furnace: 20,000 BTU
Air Conditioner: 13,500 BTU roof-mounted
Water Heater: Tankless on-demand
Refrigerator: 10.7 cu ft 12V
Cooktop: 3-burner with microwave included
Slide-Outs and Exterior
Slide-Outs: 1 (dinette area)
Power Awning: Equipped with LED lighting
Rear Stabilizer Jacks: Included for added stability at camp
Entertainment
Prepped for TV installation and soundbar-ready audio system
